Siri Toi Dam, Zhob
Project Description
The Siri Toi Dam Project is located in Union Council Sambaza, Tehsil and District Zhob in Balochistan Province, approximately 62 km north-east of Zhob on Sri Toi River, the main tributary of Zhob River near Killi Gul Khan. The latitude and longitude of the scheme are 31° 35′ 56.35″ N, 69° 16′ 8.86″ E. The annual average availability of water is nearly 32.216Million Cubic Meter (MCM) with a catchment area of 962 sq.km. Main components of the sub-project includes main dam, dyke, spillway, intake and outlet structures and network of main and distributary canals for irrigation supplies.
Silent Feature
| S.NO | ||
|---|---|---|
| 01 | Total Command Area | 4,145 hectare |
| 02 | Dam Type | Earth-fill |
| 03 | Height of Dam | 72 Meter |
| 04 | Dam Reservoir Area | 195.10 (Hectare) |
| 05 | Spillway Type | Ogee |
| 06 | Width of Spillway | 148 Meter |
| 07 | Height of Dyke | 38 Meter |
| 08 | Intake Tower Height | 46.40 Meter |
| 09 | Length of Right Bank Canal | 11,535 Meter |
| 10 | Length of Left Bank Canal | 15,718 Meter |
| 11 | Feeder Channel Length | 937 Meter |
Project Progress
Physical Progress
50%
Financial Progress
47%
- Contractor M/s Noor-ul-Haq & Brothers
- Commencement 5th Jan 2022
- Completion Date 7th Jan 2027

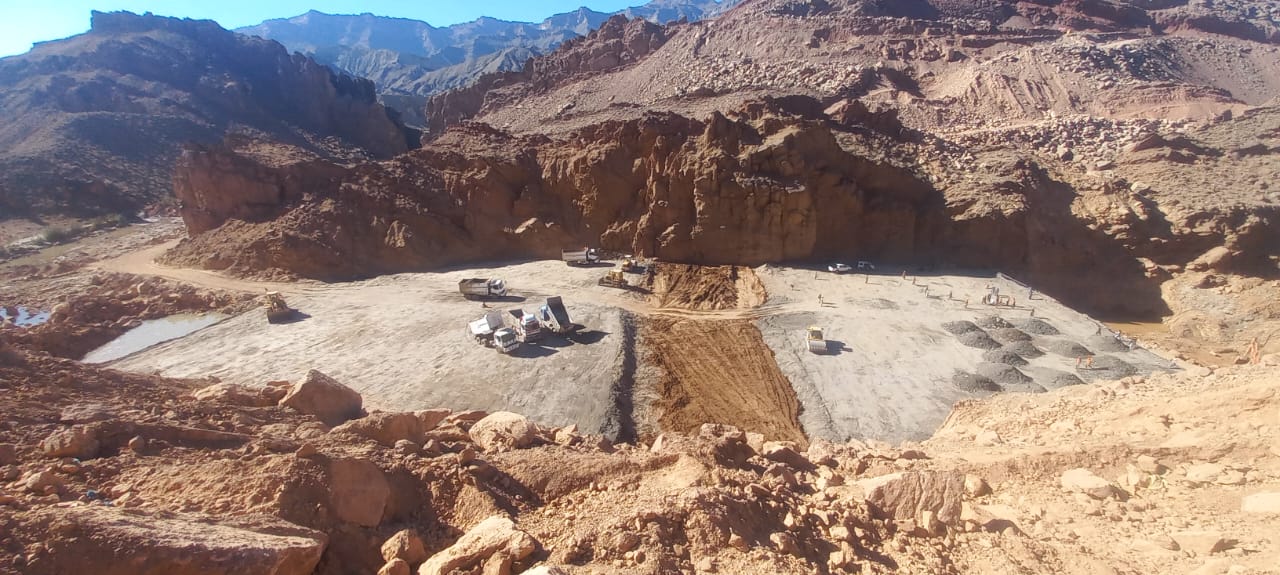

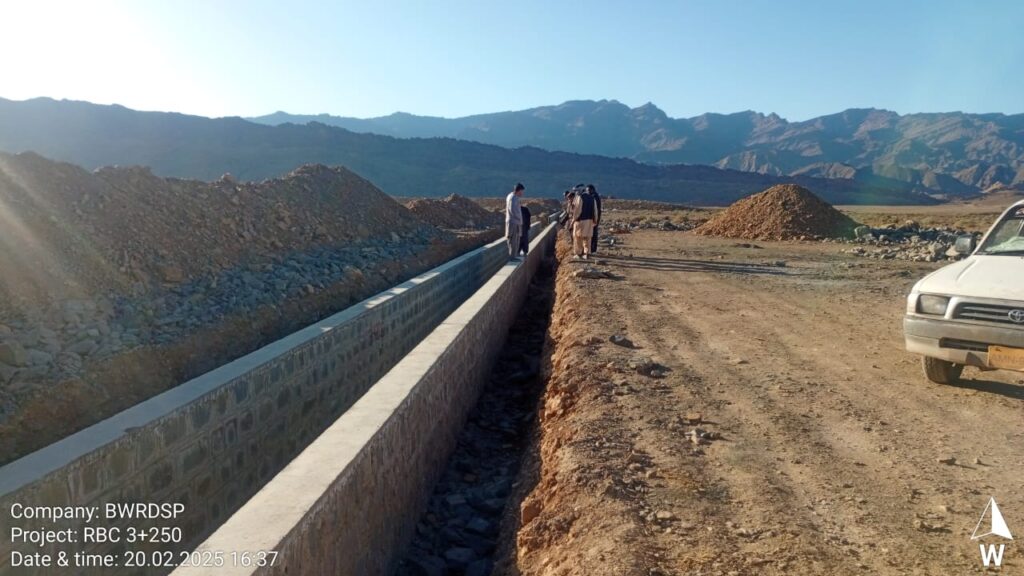

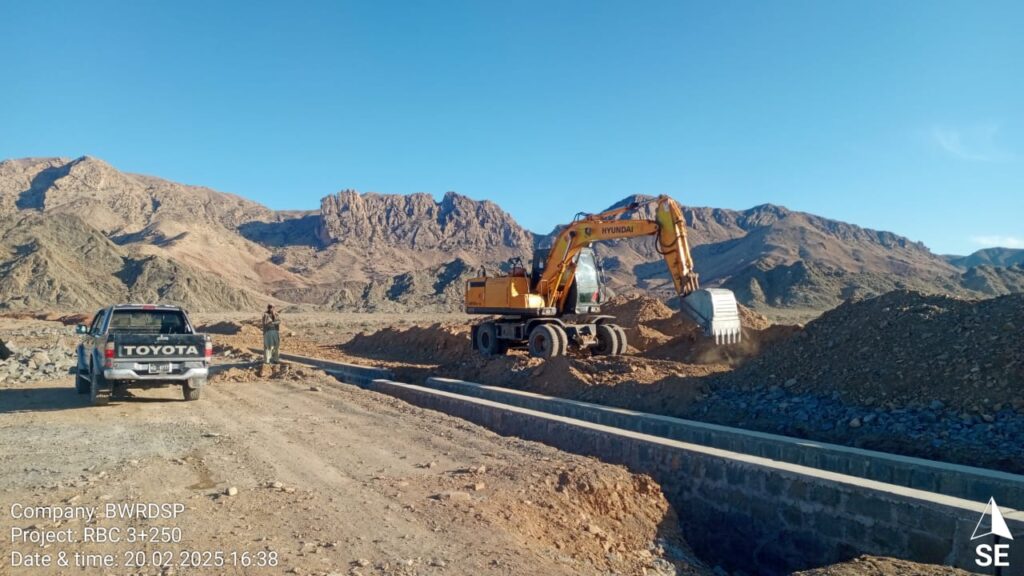

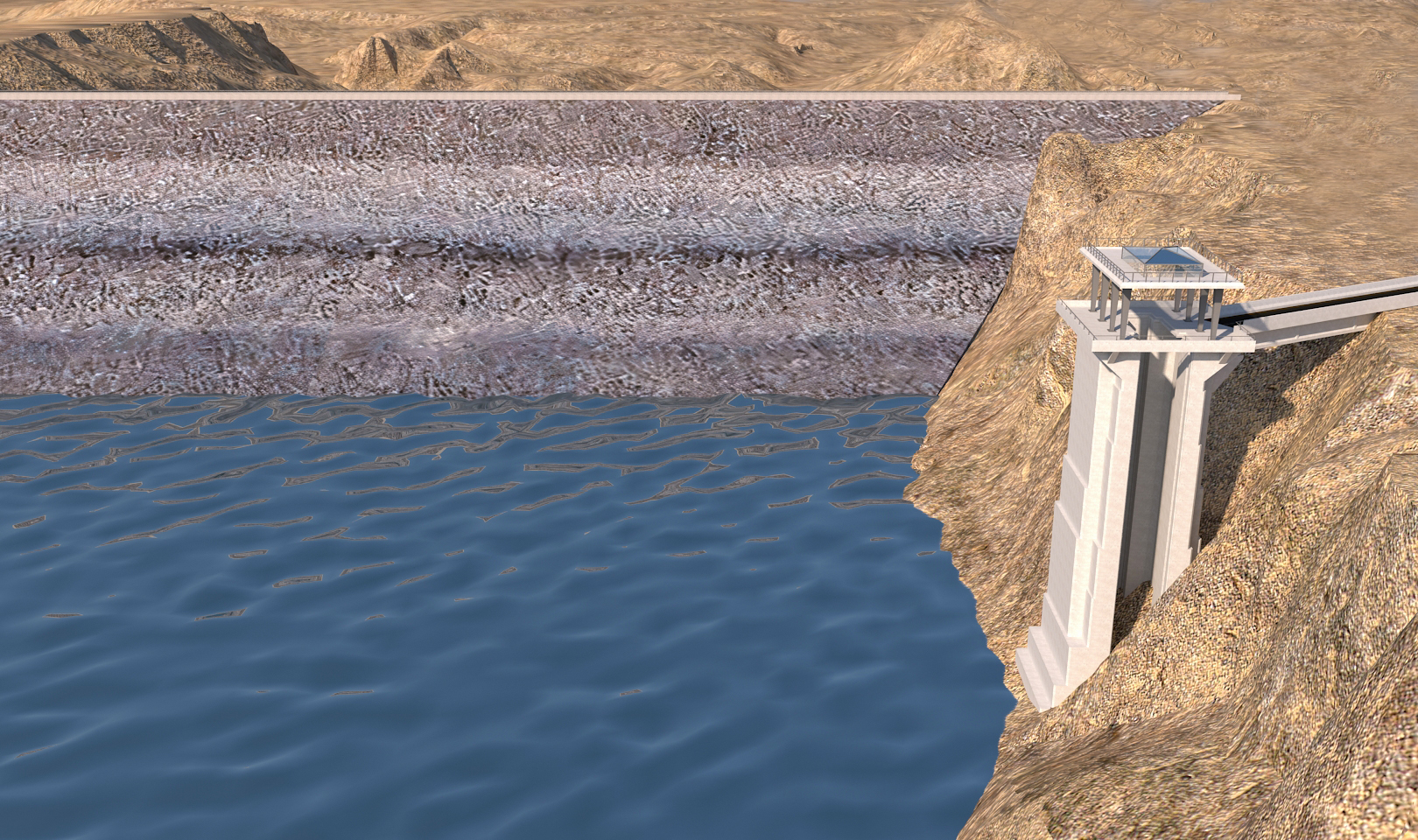

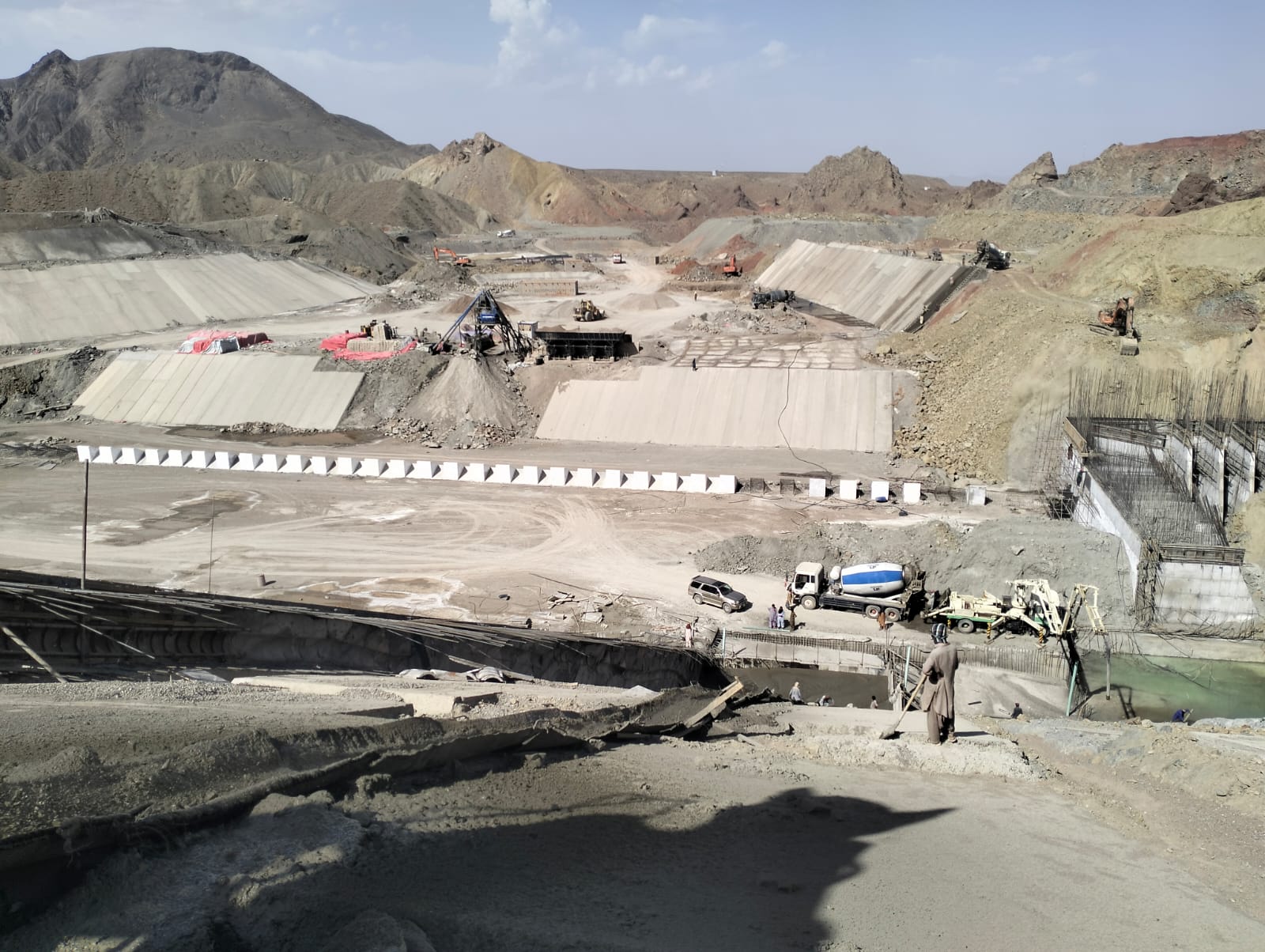

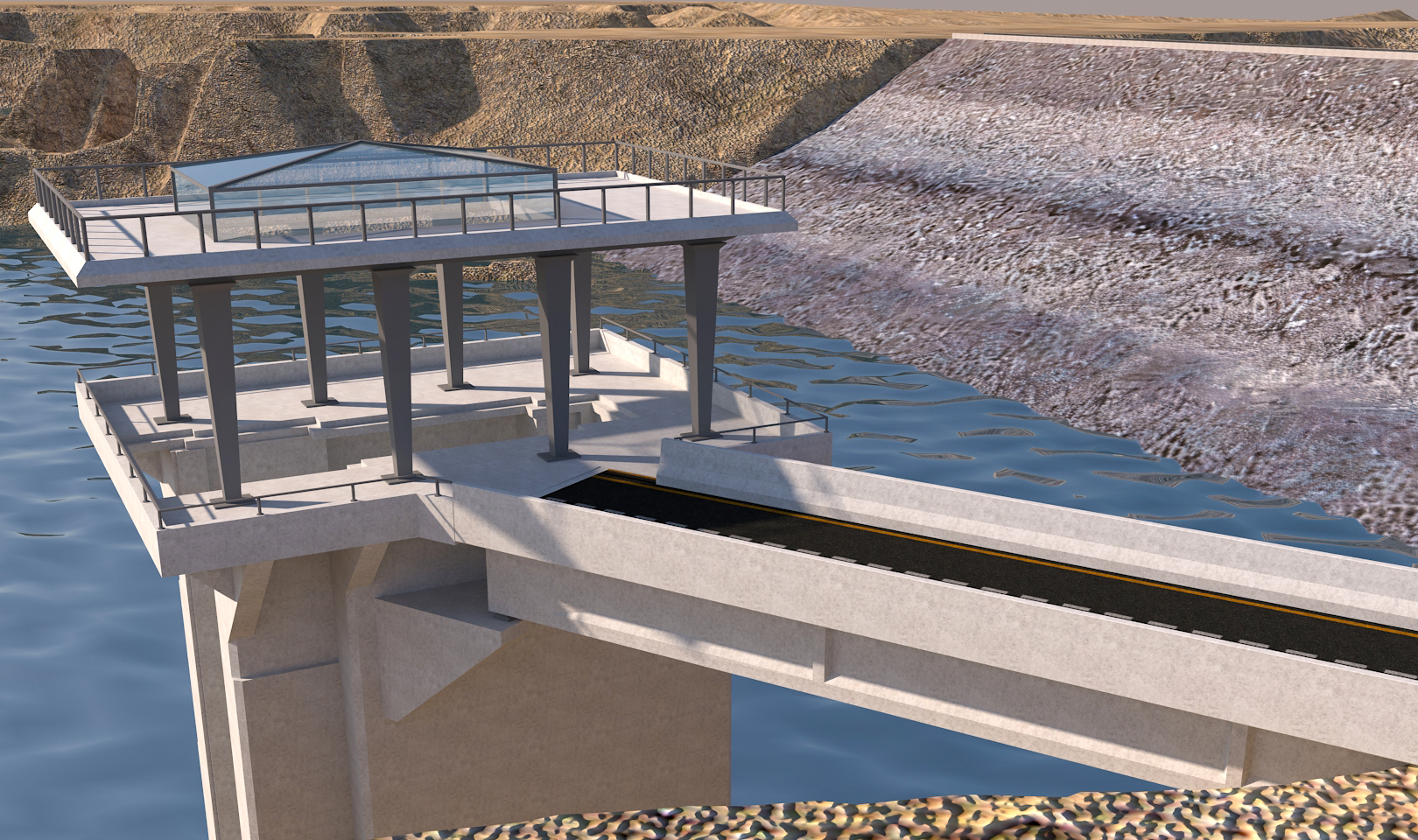

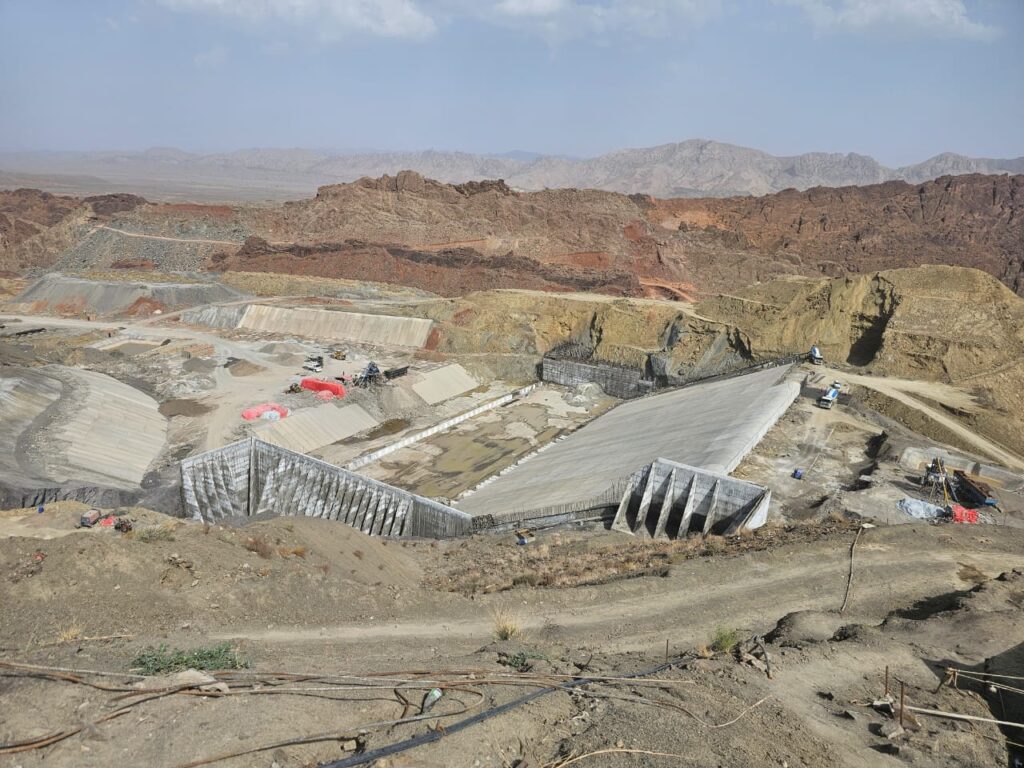

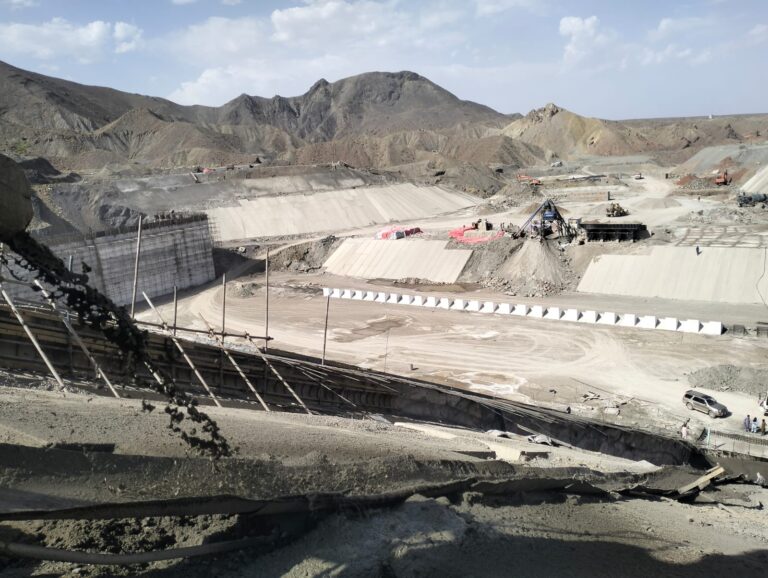

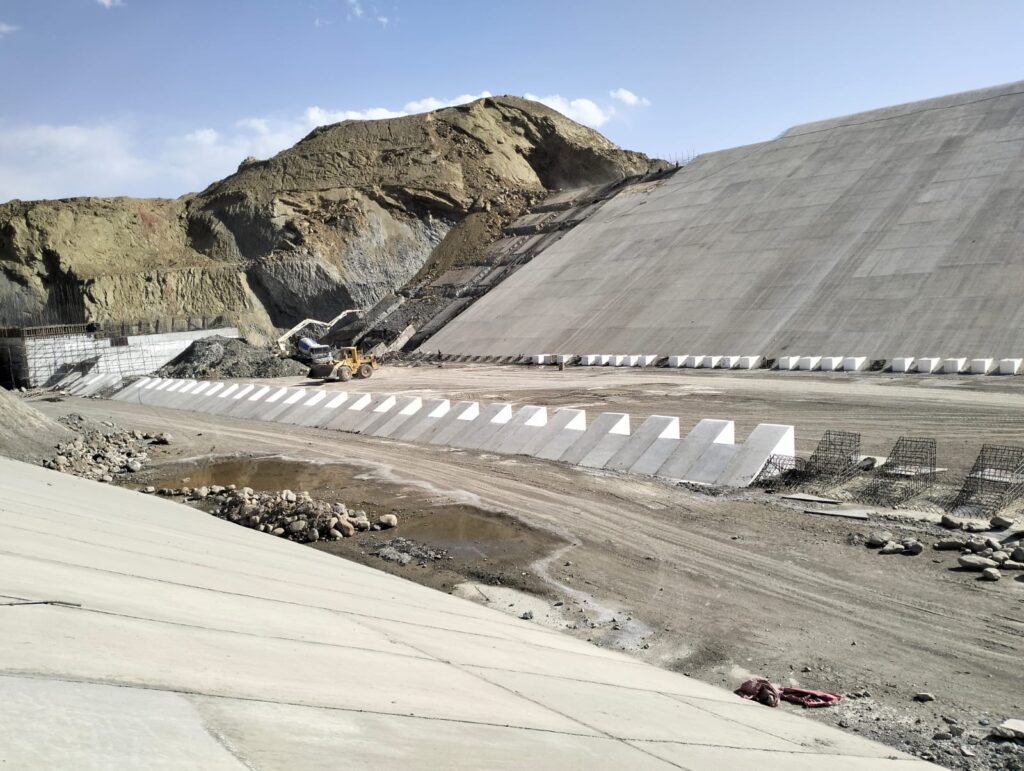

On-site Visual Documentation
